Concealed-Fix

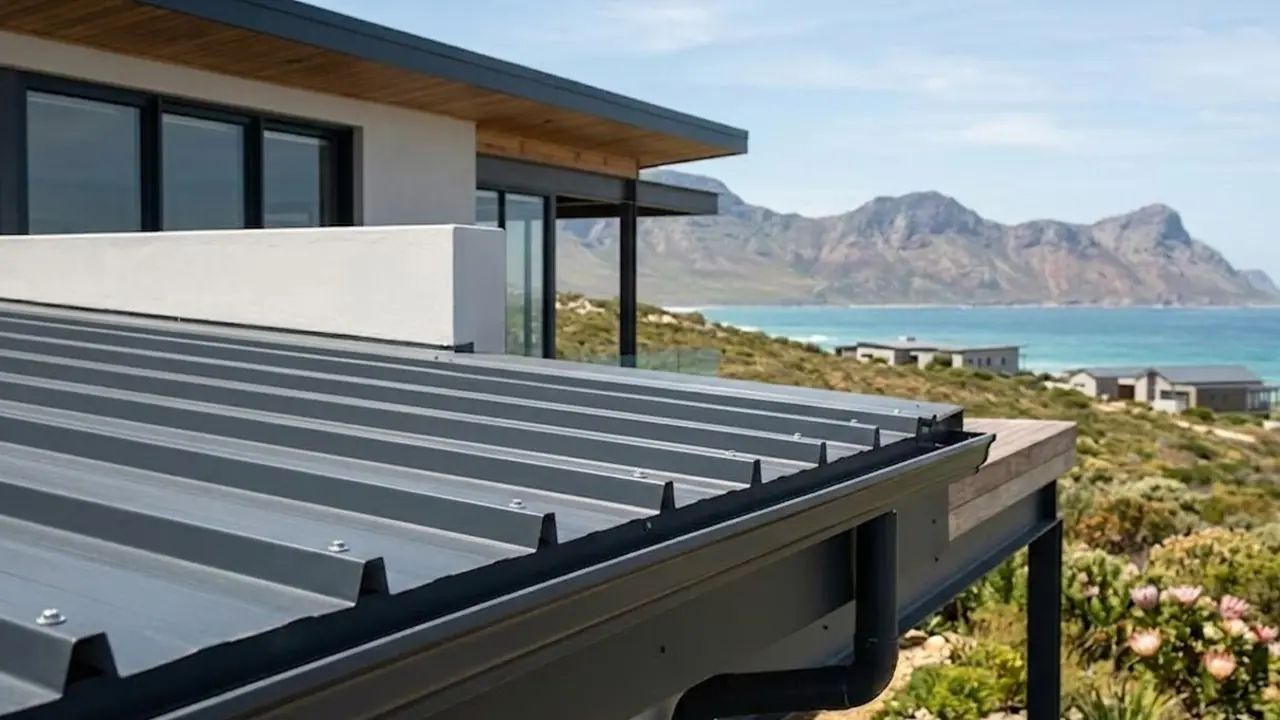

Surelok 695
Concealed-fix standing-seam system with a 2° minimum pitch, the lowest in the Roofco range.
- Concealed-fix
- 2° min pitch
- 695 mm cover
Overview
Concealed-fix roofing
Surelok 695 is Roofco's concealed-fix roofing system. Hidden fixings protect fasteners from weather and thermal movement, producing a clean surface with no exposed hardware. The 2° minimum pitch makes it suitable for low-slope commercial and industrial roofs where conventional corrugated profiles cannot be used.
Where it's used
- Industrial
- Commercial
Technical specification
Specification
- Cover width
- 695 mm
- Min. pitch
- 2°
- Profile depth
- 41 mm min.
- Rib centres
- 233 mm
- Ribs per sheet
- 4
Material options
- Aluzinc AZ100 (0.47 mm)
- Aluzinc AZ150 (0.47 – 0.80 mm)
- Aluzinc AZ200 (0.47 – 0.80 mm)
- Aluminium (0.80 mm)
- Zinc (0.50 mm)
Span & drainage data
Span tables
Roof purlin spans
| Gauge | Single span | End span | Internal span | Cantilever | Mass kg/m² |
|---|---|---|---|---|---|
| 0.47 mm | 1400 mm | 1500 mm | 1900 mm | 150 mm | 4.61 |
| 0.50 mm | 1500 mm | 1600 mm | 2200 mm | 200 mm | 5.01 |
| 0.53 mm | 1700 mm | 1800 mm | 2300 mm | 200 mm | 5.31 |
| 0.58 mm | 1900 mm | 2000 mm | 2500 mm | 250 mm | 5.81 |
Cladding spans
| Gauge | End span | Internal span | Cantilever |
|---|---|---|---|
| 0.47 mm | 2200 mm | 2400 mm | 150 mm |
| 0.50 mm | 2300 mm | 2500 mm | 200 mm |
| 0.53 mm | 2500 mm | 2700 mm | 200 mm |
| 0.58 mm | 2700 mm | 2900 mm | 250 mm |
Drainage
| Rainfall mm/h | 2° slope | 3° slope | 4° slope |
|---|---|---|---|
| 150 | 169 m | 207 m | 268 m |
| 200 | 127 m | 155 m | 201 m |
| 250 | 100 m | 124 m | 161 m |
| 300 | 85 m | 104 m | 134 m |
| 350 | 72 m | 89 m | 115 m |
| 400 | 63 m | 78 m | 100 m |
| 500 | 51 m | 62 m | 80 m |
Fixing
Fixed with Surefix™, selected by corrosivity zone. Coastal and heavy-industrial environments (C4 to C5) require Class 4 as a minimum, with 316 stainless considered for the most severe exposure.
Estimator
Size your roof in real numbers.
Sheets, purlins and fasteners: a real bill of materials, not a sheet count. Calculations use a 10% waste allowance (industry default, editable).
